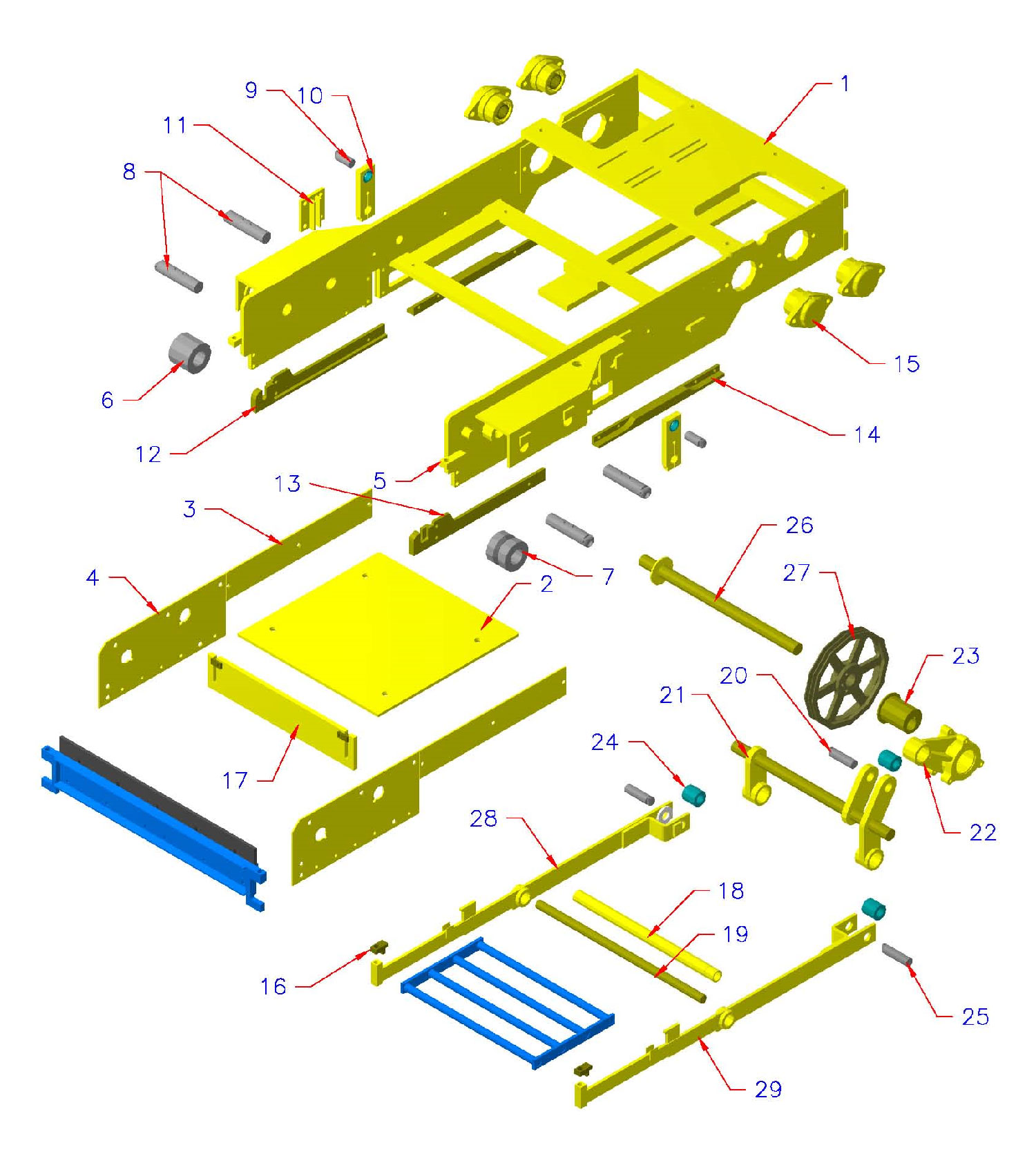

Key	QTY	Part Number	Description
1		DV4001	Feed Box Frame
2		D439104	Feed Box Back Top Plate
3		D053101	Rear Wear Liner
4		D371159	Front Wear Liner
5		D439116	Feed Box Block for Cut-off Bar
6		D288001	Plain Roller Assembly
7		D288000	V-Roller Assembly
8		D395684	Notched Pin W/Grease Fitting
9		D055567	Agitator Front Support
10		D019349	Notched Pin (3 1/2")
11		D51286	Back Bar Guide
12		D439121	Flanged Wear Shoe (LH)
13		D439122	Flanged Wear Shoe (RH)
14		D287318	Rear Wear Shoe
15		D202579	Steel Sleeved Floating Type Bearing
16		D218441	Agitator Bar Clamp
17		DV40017	Front Float
18		DV40018	Agitator Grid Bar Connecting Bushing
19		DV40019	Agitator Grid Bar Connecting Bushing Shaft
20		D019348	Notched Pin (5 1/2")
21		DV40021	Agitator Back Shaft
22		D31222	Eccentric Assembly
23& 24		D344143	Nylon Bushing (Back Shaft / Eccentric)
25		D017510	Notched Pin (5")
26		DV40026	Agitator Back Shaft (Pulley/Eccentric)
27		D31227	Drive Pulley
28		D218482	LH Agitator Grid Bar W/Clamp
29		D218481	RH Agitator Grid Bar W/Clamp
		D412857	RH Complete link Arm Assembly
		DTS412858	Trabon Lubrication System ( Installed )
		HJ648032	Eccentric Bearings
		B-55	Drive Belts
		D063074	Hardened Guide Bar
		D16434	Eccentric Hub
		DHV4	Hardware Kit
		D326493-01	Hardened Pin Retainers
