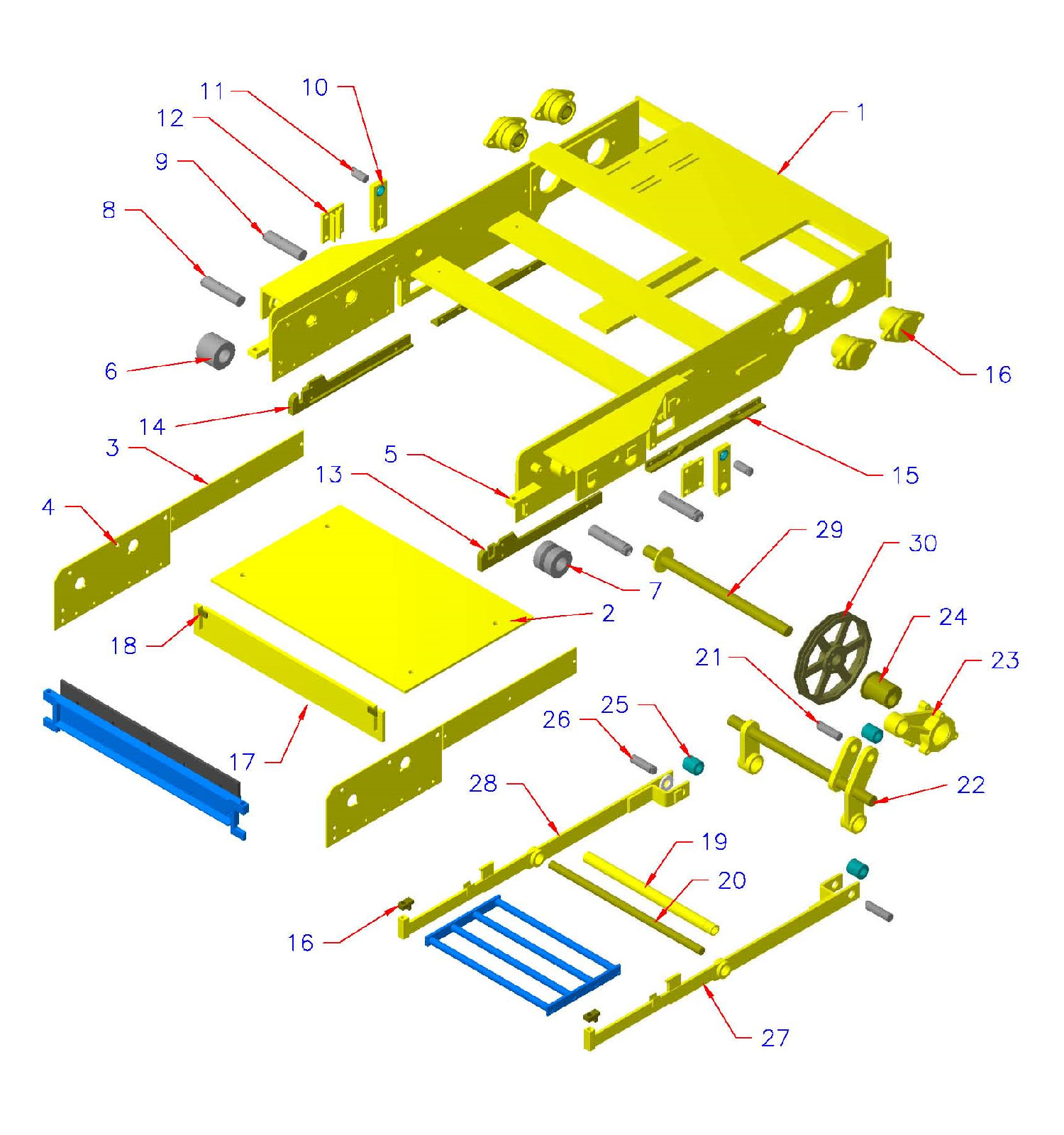

Key	QTY	Part Number	Description
1		DBV6001	Feed Box Frame
3		D053101	Rear Wear Liner
4		D386240-V6	Front Wear Liner
5		D393508	Feed Box Block for Cut-off Bar
6		D386252	Plain Roller Assembly
7		D386244	V-Roller Assembly
8		D395685	Notched Pin W/Grease Fitting
9		D390932	Notched Pin
10		D055567	Agitator Front Support
11		D019349	Notched Pin (3 1/2")
12		D51286	Back Bar Guide
13		D386238	Flanged Wear Shoe (LH)
14		D386239	Flanged Wear Shoe (RH)
15		D287318	Rear Wear Shoe
16		D202579	Steel Sleeved Floating Type Bearing
17		D386256	Feedbox Back Bar
18		D371164-V6	Feedbox Back Bar Plug
19		D386255	Agitator Grid Bar Connecting Bushing
20		D386264	Agitator Grid Bar Connecting Bushing Shaft
21		D019348	Notched Pin (5 1/2")
22		D386261	Agitator Back Shaft
23		D31222	Eccentric Assembly
24		D344143	Nylon Bushing (Back Shaft / Eccentric)
25		D017510	Notched Pin (5")
26		DB1762-01-17	Agitator Back Shaft (Pulley/Eccentric)
27		D386250-V6	LH Agitator Grid Bar W/Clamp
28		D386246-V6	RH Agitator Grid Bar W/Clamp
29		D31227	Drive Pulley
		D388402	Complete link Arm Assembly
		DTS412858	Trabon Lubrication System ( Installed )
		HJ648032	Eccentric Bearings
		B-55	Drive Belts
		D063074	Hardened Guide Bar
		D16434	Eccentric Hub
		DHV6	Hardware Kit
		D326493-01	Hardened Pin Retainers
