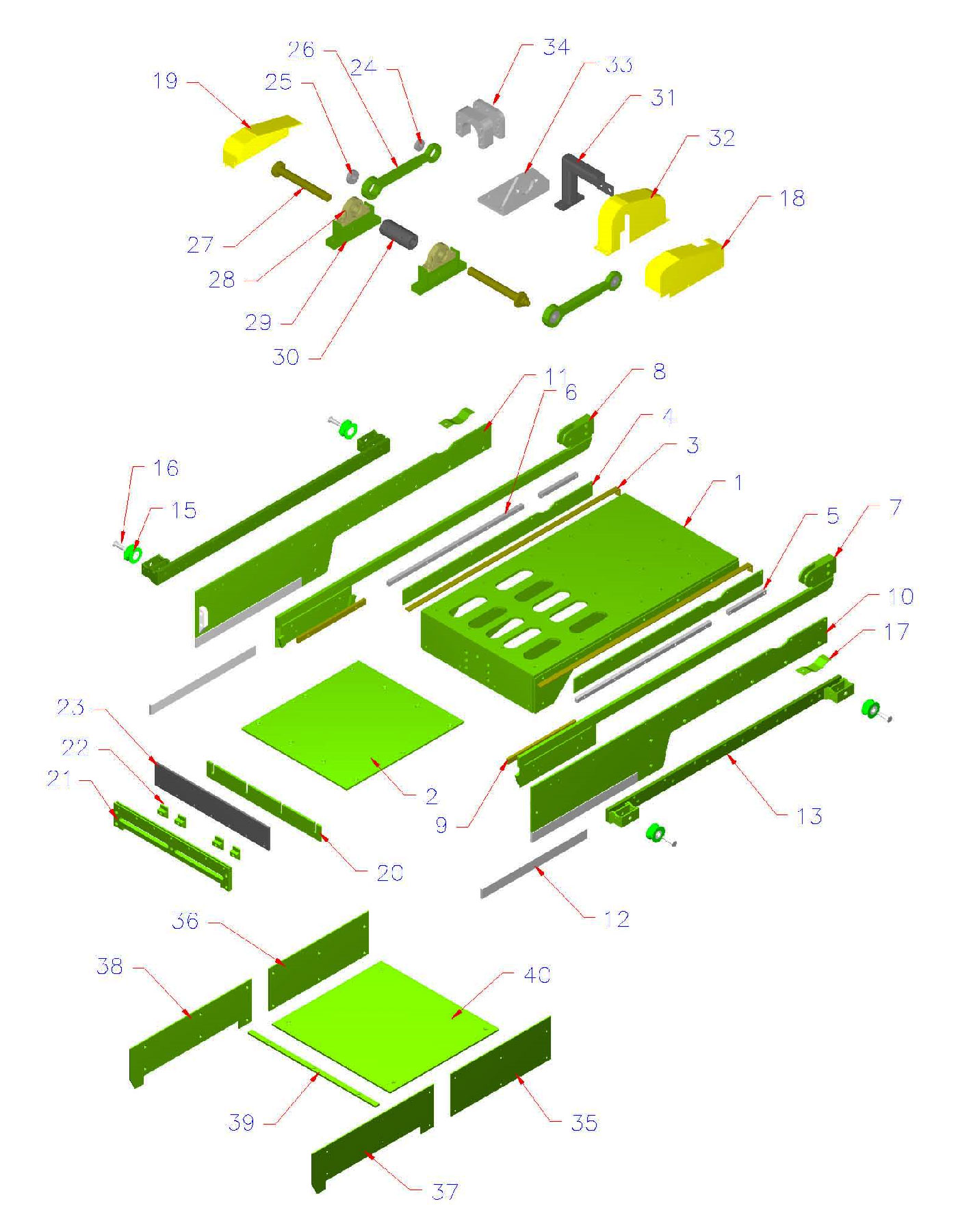

Key	QTY	Part Number	Description	Rebuild Kit Level
1		D11601	Main Frame Assembly
2		D483.16.15	Top Wear Plate	1
3		DC1189.18	L-Strip	1
4		D483.300.7	Slide Assembly Spacer	1
5		DC1697.9	Small Grease Bar	1
6		D484.2.113	Large Grease Bar	1
7		D483.300.516	Agitator Slide Arm RH*	1
8		D483.300.517	Agitator Slide Arm LH*	1
9		D483.300.21	Agitator Hold Down Bar	1
10		D483.302.2	Side Plate Assembly (includes wear shoe) RH	2
11		D483.302.3	Side Plate Assembly (includes wear shoe) LH	2
12		D2212	Side Plate Wear Shoe	1
14		D484.300.27	Wheel Support Bar LH	2
15		D1263.20A	Wheel Assembly	1
16		D1263.26	Wheel Pin	1
17		DC1966.21	Cover Clip
18		D1966.28	Eccentric Cover RH
19		D1966.22	Eccentric Cover LH
20		DC1697.19	Wiper Blade	1
21		DC1641.23	Front Wiper Bar Assembly	2
22		DC1641.38	T-Nut	2
23		DC1641.26	Rubber Wiper	2
24		D410724	Small Bearing	2
25		D410910	Large Bearing	2
26		DC1697.40	Connecting Rod
27		DC1697.13	Crankshaft
28		D410106	Crankshaft Bearing	2
29		DC1697.15	Bearing Mount
30		DC1697.14	Coupler
31		D483.17.330	Hydraulic Support Arm
32		DC1697.21	Chain Guard
33		D483.13.136	Hydraulic Motor Mount
34		D11601.12	Ram Shaft Housing 2 pc. unit
		DHN16	Hardware Kit (Lube Fittings, Nuts, Bolts, Washers)	1
35		DC1640.15	Rear Wear Plate RH
36		DC1640.14	Rear Wear Plate LH
37		D483.202.6	Front Wear Plate RH
38		D483.202.7	Front Wear Plate LH
39		DC1640.29	Bed Plate Wear Strip
40		D483.16.11	Bed Plate
