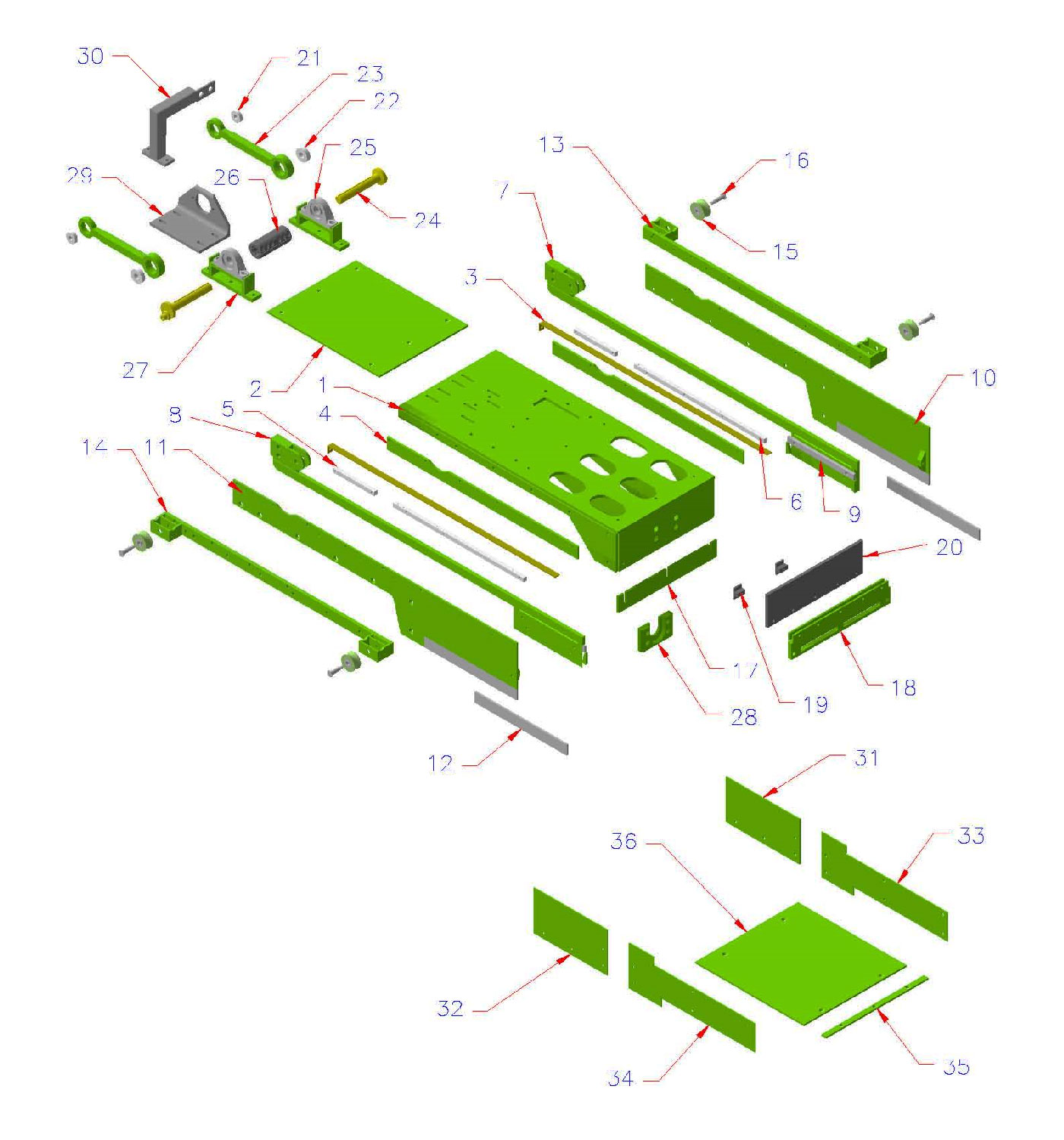

Key	QTY	Part Number	Description	Rebuild Kit Level
1		DC1189-26	Main Frame Assembly
2		DC1189.6	Wear Plate	1
3		DC1189.18	L-Strip	1
4		DC1189.17	Slide Assembly Spacer	1
5		DC1697.9	Small Grease Bar	1
6		DC1189.16	Large Grease Bar	1
7		DC1189.28	Agitator Slide Arm RH	1
8		DC1189.29	Agitator Slide Arm LH	1
9		DC1189.32	Agitator Hold Down Bar	1
10		DC1189.7	Side Plate Assembly (includes wear shoe) RH	2
11		DC1189.8	Side Plate Assembly (includes wear shoe) LH	2
12		D2212	Side Plate Wear Shoe	1
13		DC1189.14	Wheel Support Bar RH	2
14		DC1189.15	Wheel Support Bar LH	2
15		D1263.20A	Wheel Assembly	1
16		D1263.26	Wheel Pin	1
17		DC1189.20	Wiper Bar	1
18		DC1004.23	Front Wiper Bar Assembly	2
19		DC1641.38	T-Nut	2
20		DC1004.81	Rubber Wiper	2
21		D410724	Small Bearing	2
22		D410910	Large Bearing	2
23		DC1697.40	Connecting Rod
24		DC1189.19	Crankshaft
25		D410106	Crankshaft Bearing	2
26		DC1697.14	Coupler
27		DC1697.15	Bearing Mount
28		D2229	Ram Shaft Housing
29		D483.13.136	Hydraulic Motor Mount
		DHM22	Hardware Kit (Lube Fittings, Nuts, Bolts, Washers)	1
31		DC1640.21	Rear Wear Plate RH
32		DC1640.39	Rear Wear Plate LH
33		DC1640.20	Front Wear Plate RH
34		DC1640.40	Front Wear Plate LH
35		DC2213.8	Bed Plate Wear Strip
36		DC1640.23	Bed Plate
