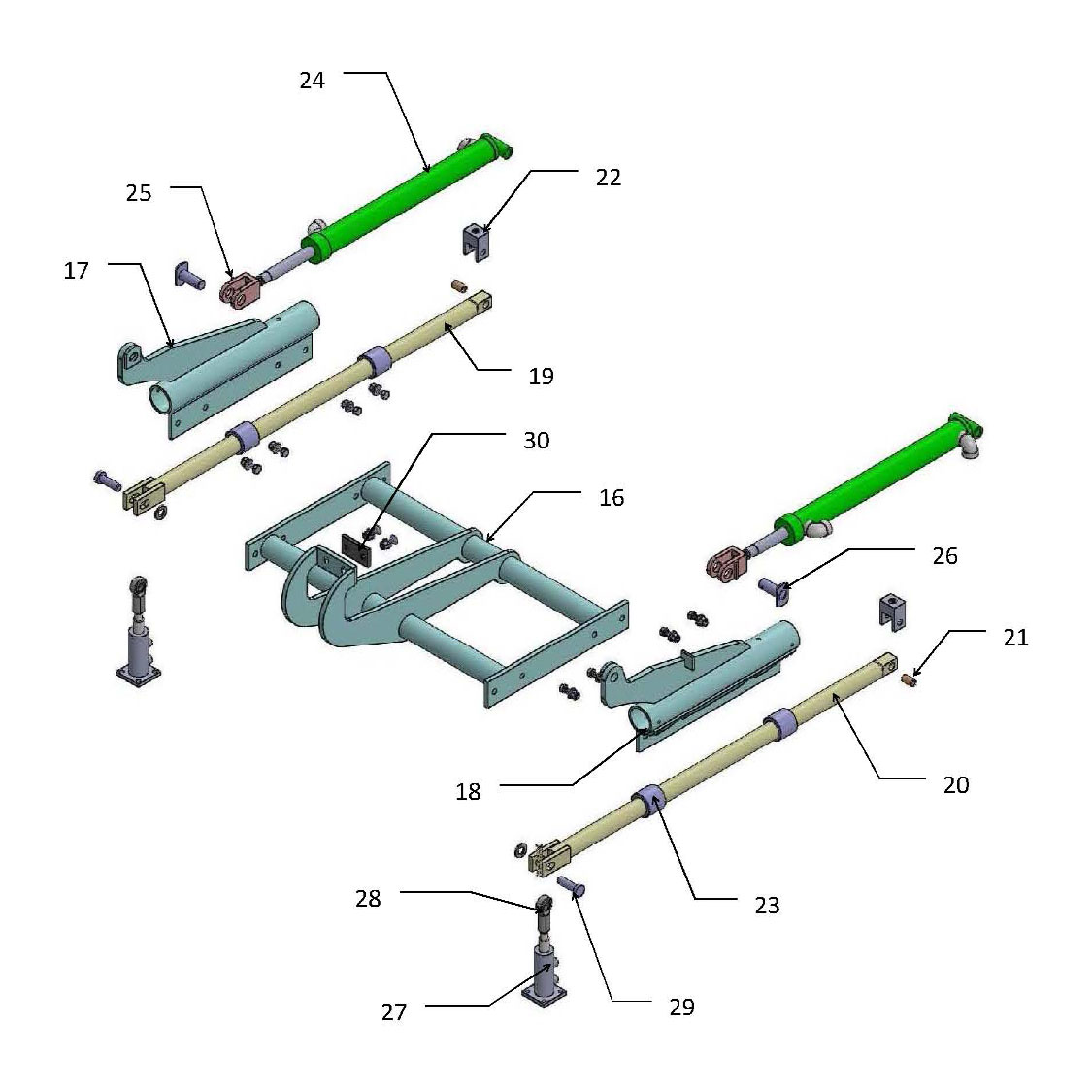

CPR 100 Pallet Pusher Parts

Key QTY Part Number Description
16 CP100-17 Carriage Assembly
17 CP100-11L Left Carriage Assembly
18 CP100-11R Right Carriage Assembly
19 CP1010042L Left Slide Shaft
20 CP1010042R Right Slide Shaft
21 CP1010036 Shaft Bushing
22 CP1010034 Shaft Hanger
23 CP1009033 Nylon Shaft Bushing
24 CP1010032 Push Cylinder
25 DB-28-2T Clevis
26 CP1019955 Clevis Pin
27 CP1010044 Hydraulic Lift Cylinder
28 60645K381 Ball Joint
29 CP1019805 Pin
30 CP1017079 Pusher Pad
  CP1008032KT Push Cylinder Seal Kit
  CP1010044KT Lift Cylinder Seal Kit
