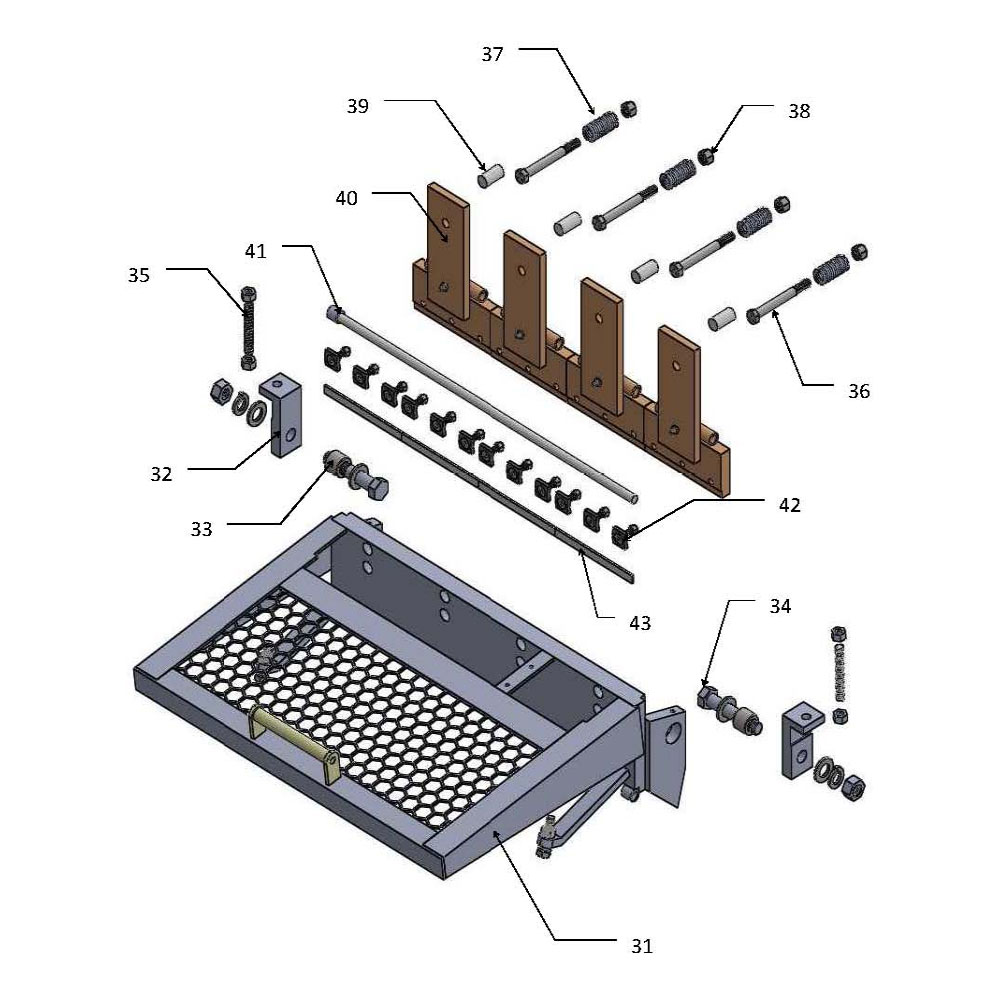

CPR 100 Pallet Scraper Head Parts

CPR 100 Pallet Scraper Head Parts

Key QTY Part Number Description
31 CP100-18-01 Scraper Head Weldment
32 CP1019062 Head Adjustment Bracket
33 CP1019064 Bushing
34 HHCS, Nuts and Washers 3/4-10 x 4.50"
35 Threaded Rod and Nuts 1/2-13 x 3.50"
36 HHCS 1/2-13 x 4.50"
37 CP1019067 Compression Spring
38 Lock Nut 1/2-13
39 CP1020056 Damping Plug
40 CP100-020 Blade Holder Assembly
41 CP1019057 Hinge Pin
42 CP1020051 Blade Clamp
43 CP1020052 Carbide Scraper Blade
