CPR 100 Pallet Scraper Parts

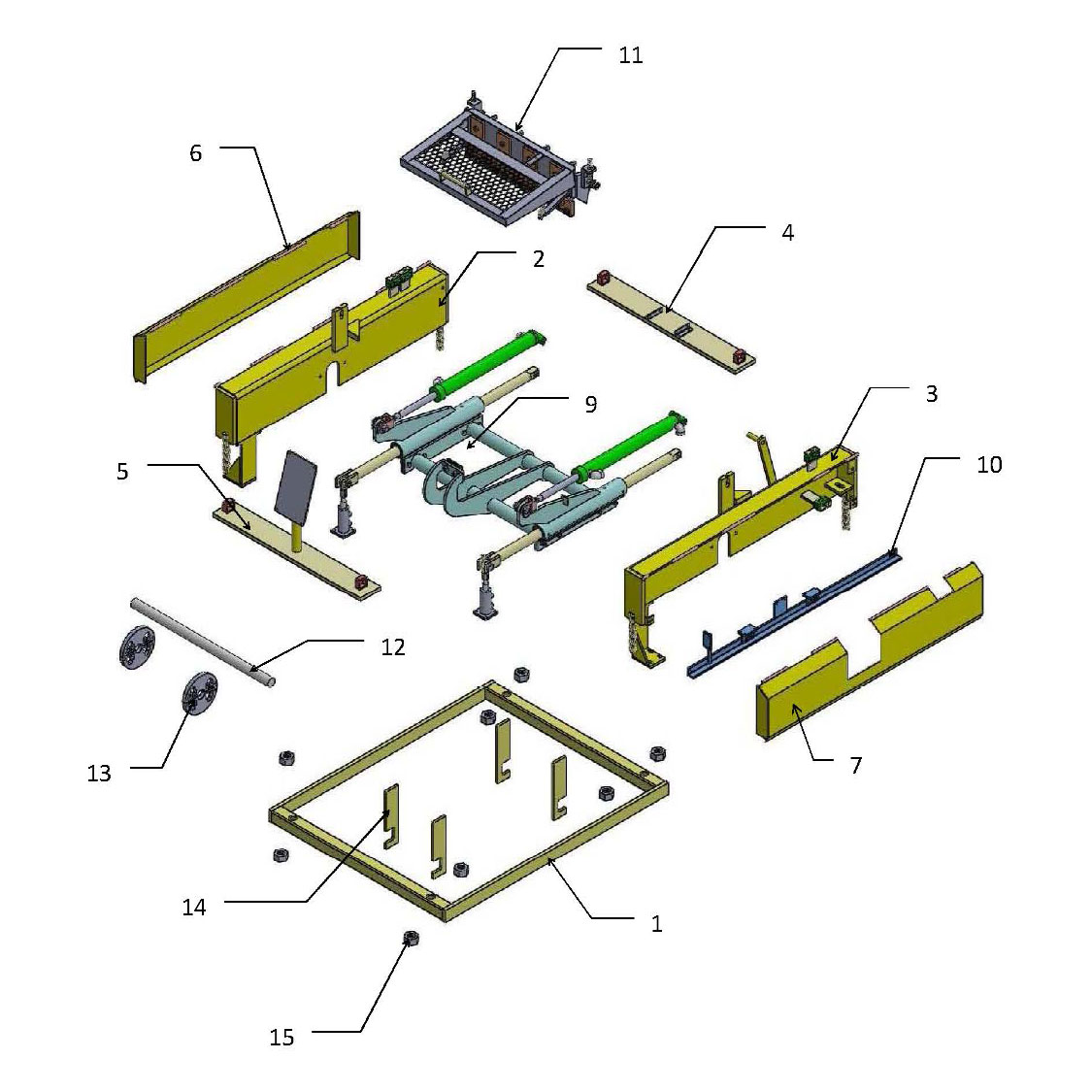

CPR 100 Pallet Scraper Parts

Key QTY Part Number Description
1 CP100-01 Frame
2 CP100-02 Left Side
3 CP100-03 Right Side
4 CP100-04 Front Support Plate
5 CP100-05 Rear Support Plate
6 CP100-06 Left Cover
7 CP100-07 Right Cover
9 CP100-10 Pallet Pusher Assembly
10 CP100-14 Switch Holder
11 CP100-18 Scraper Head Assembly
12 CP1016077 Trunnion Shaft
13 CP1016078 Trunnion Wheel
14 CP1001001-01 Frame Mounting Plate
15 Frame Nuts 1 1/4" - 7 Frame Nuts
