Dynco CPR6 Pallet Scraper

Dynco CPR6 Pallet Scraper

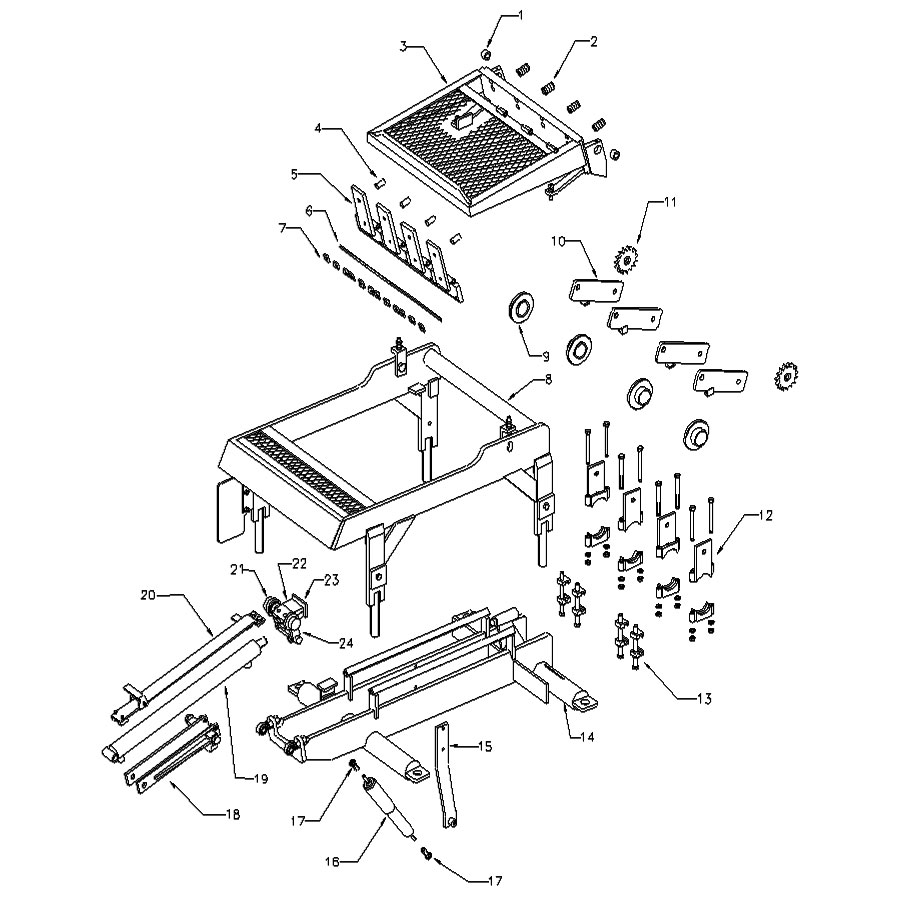

Key QTY Part Number Description
1 26010002 Head Pivot Bushing
2 C6005009 Head Spring
3 C601-004 Scraper Head Assembly
4 26010012 Nylon Dampening Plug
5 26011001 Blade Holder Assembly
6 26011003 Carbide Blade
7 26011002 Blade Clamp
8 601003 Upper Frame Assembly
9 C6001021 Trunion Roller Wheel
10 C600129 Trunion Roller Support Bracket L & R
11 C6001025 Chain Sprocket
12 C6001033 Wheel Support Bracket Frame Mount Assembly
13 601083 Wheel Adjuster Assembly
14 C602-001 Lower Frame Assembly
15 C6001017 Shock Mount Arm
16 C6001015 Shock Absorber
17 C6001016 Shock Rod End
18 C601-002 Hydraulic Cylinder Yoke Assembly
19 C6002003 Hydraulic Cylinder
20 C6002005 Cylinder Saddle Cover Assembly
21 C6001012 Pusher Head Wheel Assembly
22 C6001014 Pusher Head
23 C6001014A Pusher Plate
24 C6001013 Pusher Head Yoke
