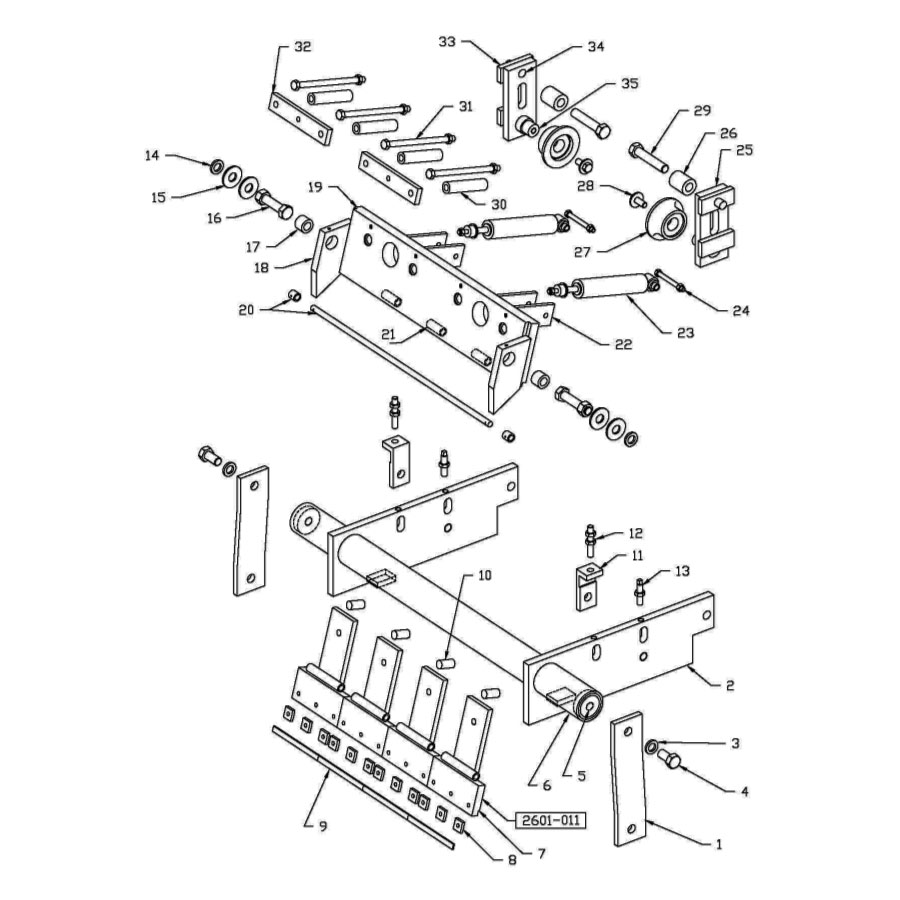

Dynco V3R Pallet Scraper

Dynco V3R Pallet Scraper

Key QTY Part Number Description
1 V3001001 Vertical Mounting Bracket
2 V3001002 Side Plate
3 V3001003 Lock Washer
4 V3001004 Hex Bolt
5 V3001005 Main Shaft End Plug
6 V3001006 Main Shaft
7 26011001 Blade Holder Assembly
8 26011002 Blade Clamp
9 26011003 Carbide Blade
10 26010012 Nylon Dampening Plug
11 26005007 Head Adjustment Bracket
12 26005008 Stud
13 V3001007 Set Screw
14 26010004 Lock Washer
15 26010003 Washer
16 26010001 Hex Bolt
17 26010002 Head Pivot Bushing
18 26010005 Side Pivot Plate
19 V3001008 Scraper Head Body
20 26010011 Hinge Pin
21 26010014 Spacer
22 V3002001 Shock Tower Plate
23 V3002002 Shock Absorber
24 V3002003 Bolt and Nut
25 V3003001 Roller Bracket
26 V3003002 Spring
27 V3003003 Flanged Roller
28 V3003004 Bolt and Washer
29 V3003008 Bolt Roller Bracket
30 V3002005 Compression Spring
31 V3001016 Blade Holder Bolt
32 V3002006 Shock Bolster Plate
33 V3003005 Spacer Bracket
34 V3003006 Pin Bracket
35 V3003007 Axel Bracket
